In an era where micron-level tolerances define competitive advantage, the selection of large-scale machining infrastructure has become a strategic imperative rather than a mere procurement decision. Bridge type machining centers—distinguished by their gantry-style construction that spans rigid columns across a fixed or movable worktable—have emerged as the backbone of precision manufacturing for aerospace structural components, automotive stamping dies, and energy sector equipment. These machines deliver the exceptional rigidity and stability required for heavy-duty cutting of oversized workpieces, yet their performance hinges entirely on the sophistication of their underlying CNC architecture.
As Industry 4.0 continues to reshape the machining landscape, today’s bridge type centers are evolving far beyond their mechanical origins. Advanced 5-axis simultaneous control, real-time spindle monitoring, and AI-driven predictive maintenance capabilities are now standard expectations rather than premium upgrades. The integration of digital twin technology and automated pallet changing systems has transformed these machines into connected production nodes capable of unmanned operation and lights-out manufacturing. Consequently, the gap between conventional gantry equipment and smart, adaptive machining systems continues to widen, placing enormous pressure on manufacturers to identify suppliers who balance mechanical robustness with digital intelligence.
For operations managers and capital equipment procurement teams, the stakes extend beyond initial acquisition costs. The right bridge type machining center directly impacts throughput consistency, scrap rates, and overall equipment effectiveness (OEE)—metrics that determine profitability in high-mix, low-volume production environments. Conversely, misalignment between machine capabilities and production requirements can result in costly bottlenecks, excessive downtime, and compromised surface finishes that cascade through the entire supply chain.
This comprehensive analysis examines the leading manufacturers currently defining excellence in bridge type machining center technology, evaluating their engineering philosophies, control system integrations, and global service infrastructures to guide your next strategic equipment investment.
Buying Guide for Bridge Type Machining Center
Bridge Type Machining Center Buyer’s Guide: Critical Specifications for Large-Part Manufacturing

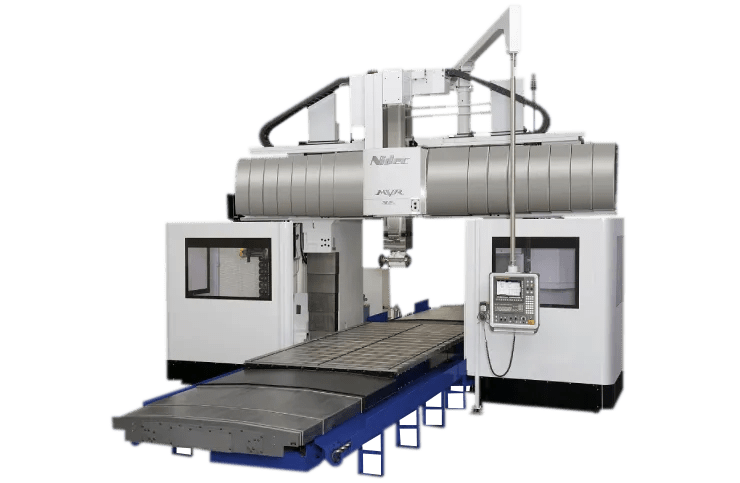

When production demands shift toward oversized components—whether aerospace structural elements, injection mold bases, or energy sector turbine housings—the bridge type machining center (bridge mill) emerges as the definitive solution. Distinguished by its overhead bridge structure spanning the worktable, this architecture delivers the rigidity and travel necessary for heavy stock removal across expansive work envelopes.
However, not all bridge mills are engineered equally. For procurement teams and manufacturing engineers evaluating capital equipment investments, understanding the nuanced technical distinctions between configurations ensures alignment with specific production requirements. Below are the three critical technical factors that should drive your specification process.
Spindle Speed and Torque Characteristics
The spindle system represents the operational heart of any bridge mill, yet the speed-to-torque relationship requires careful analysis distinct from standard vertical machining centers. Bridge mills typically encounter two divergent operational scenarios: high-speed finishing of complex contours (particularly in mold and die applications) and heavy roughing of castings or forgings.
Key Evaluation Criteria:
- Power Curve Architecture: Examine whether the spindle offers a constant torque range (ideal for heavy material removal with large-diameter cutters) or constant power range (better for high-speed finishing). For mixed applications, consider dual-contact spindles with automatic gear shifting or wide-range motorized spindles.
- Torque Delivery at Low RPM: Bridge mills frequently utilize face mills and indexable drills exceeding 80mm diameter. Verify that the spindle maintains adequate torque (measured in Nm) below 1,000 RPM to prevent stalling during aggressive roughing passes.
- Taper Specification and Tooling Interface: BT50 or CAT50 tapers remain standard for heavy-duty bridge mills, though HSK-A100 interfaces are increasingly specified for high-torque transmission and tool change reliability. Ensure the spindle design accommodates through-spindle coolant (TSC) at pressures exceeding 70 bar for deep-cavity work common in large mold manufacturing.
Structural Rigidity: Gantry vs. Moving Column Configurations
Bridge mills fundamentally diverge into two kinematic architectures,
The global Bridge Type Machining Center market features numerous capable manufacturers, each offering distinct advantages in precision engineering, spindle technology, and structural rigidity. Whether prioritizing massive work envelope capacities, high-speed five-axis capabilities, or specialized heavy-duty applications, selecting the right manufacturing partner requires careful evaluation of technical specifications, after-sales support, and customization capabilities. As industries demand increasingly complex machining solutions for large-scale components—from aerospace structures to energy sector equipment—the importance of partnering with a manufacturer that combines engineering excellence with flexible production capabilities has never been greater.
JHF Machinery: Your Premier Manufacturing Partner
Among these industry leaders, Машины JHF emerges as the premier choice for discerning industrial clients seeking unparalleled versatility, customization expertise, and manufacturing excellence. As a professional CNC machine tool manufacturer and supplier headquartered in China, JHF Machinery has established a distinguished reputation for delivering specialized OEM and ODM services to global industrial
